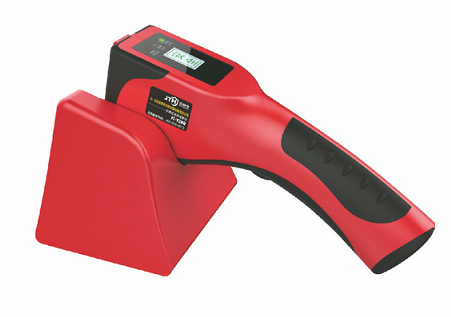

Hand Held Liquid Scanner Model:JT-Y300

★ Identify chemical composition of liquids, which is sealed in bottle or can.

★ Small size, high speed analysis, easy to operate.

★ Control access security of airport, train station, subway, gymnasium, important government office, boarder, and seaport and so on.

No radiation, harmless to people and test sample - Ultra-wideband pulse microwave reflection method & the thermal conductivity technology

Technical Data:

Component	The host and charging base
Limited material of bottle / can	Iron, aluminum, plastic, glass, porcelain, china, pottery.
Limitation of bottle	*Bottle size no less than: 5.5cm1.5cm, capacity no less than 50ml.**
Identify dangerous liquid	More than 40 sorts: Gasoline, kerosene, diesel oil , hydrochloric acid , sulfuric acid , nitric acid , sodium hydroxide , potassium hydroxide , isopropyl ether , petroleum ether, propionaldehyde, benzene, carbon disulfide, hexane, isopropanol, nitromethane, diethylamine , tris the trihalomethanes , ethylene glycol, xylene and other flammable, corrosive liquids
Data storgage	No less than 1000times test results are saved automatically. USB port available to load down the datas.
Alarm for dangerous liquid	Audio and visual alarm
Power on time	1 seconds
Identify time	Metal container: within 8 seconds Other container: within 1 second
Out size	*2165079mm(LWH)*
Weight	<200g (with battery)
Temperature of container	5-35℃
Storage temperature / humidity	-40℃ to 60℃ / 5% to 95% humidity
Working temperature / humidity	-10℃ to 55℃ / 5% to 95% humidity
Power consumption	10W
