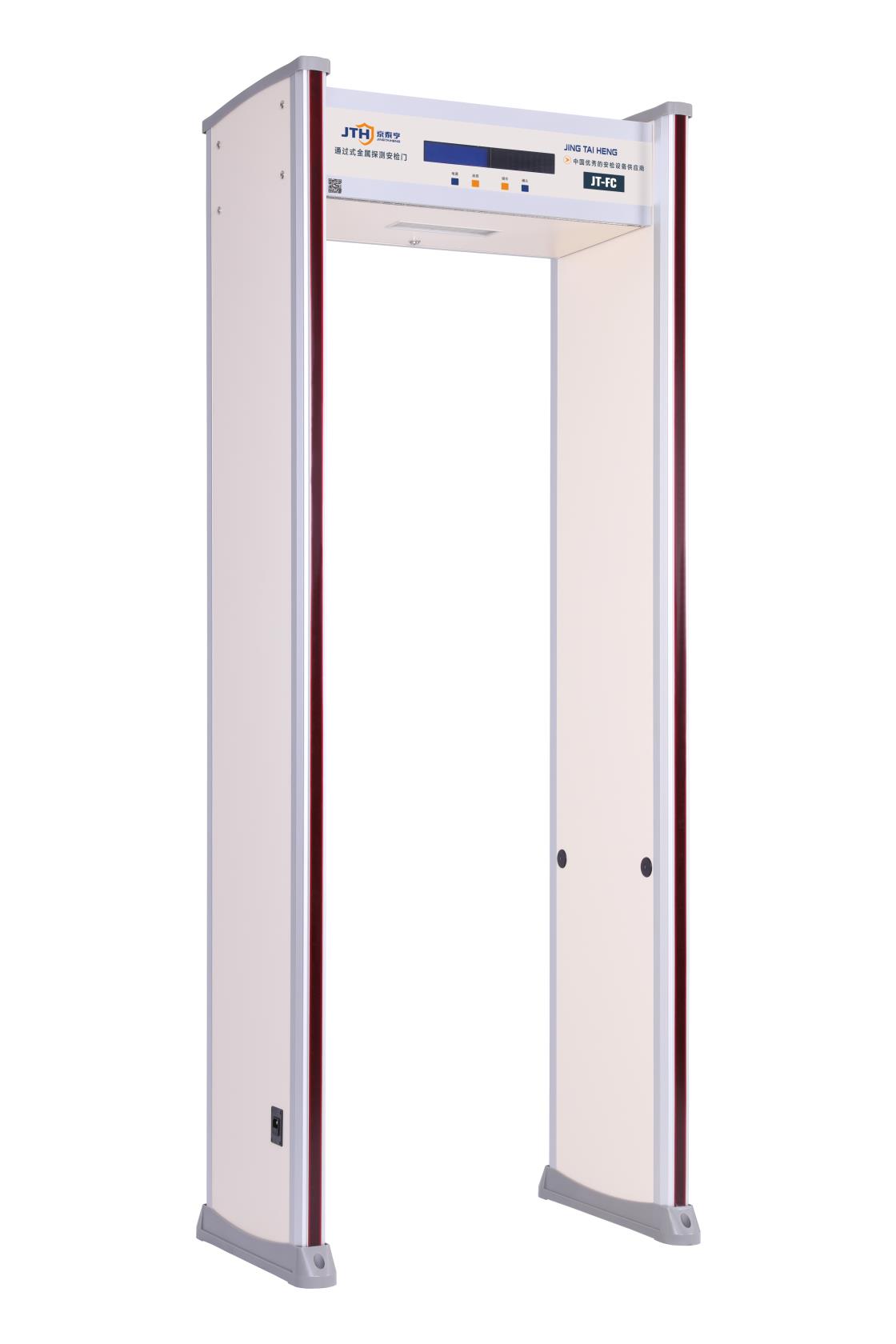

Security gate JT-FC（Temperature measuring type）

Products for the traditional metal detection security door thermometry upgrade section.The infrared thermometry technology and metal detection function are integrated to detect suspicious metal items and communicate personnel's body temperature.The security inspector can judge whether the temperature of the personnel is normal by the prompt sound and the temperature value display, and can effectively screen the abnormal temperature personnel.

In the provention and control of dangerous goods at the same time, in order to deal with the public health emergency, to provide appropriate safety and security.It adopts the world's advanced electromagnetic compatibility design and anti-vibration design.It has super high sensitivity, strong anti-interference ability and anti-seismic ability, and is suitable for the safety inspection of dangerous goods such as knives and guns.Widely used in prisons, courts, schools, hospitals, electronic enterprises, port passenger stations, exhibition halls, conference centers, major celebrations concerts and other important places.

Product advantage：

Insensible thermometry：Temperature monitoring can be carried out for the personnel who pass the security gate.

Temperature accuracy, less than or equal to 0.5 ℃.

Test distance, 0.1 to 0.3 meters.

Test Height, not less than 1.5 m.

Human body temperature screening:Built-in high-precision miniature 24-hour dynamic infrared body temperature monitor, omni-directional to the traffic personnel, body temperature scanning screening.

Ultra high detection sensitivity, can detect half of the paper clip size of the metal, will not be missed and cross-reported.

Intelligent resolution, can distinguish between ferromagnetic and non-ferromagnetic metal products.

Ultra-low detection height, the distance of more than two centimeters of metal objects into the detection area can alarm.

To feed the Chinese dream, multiple metals in different positions of the human body, alarm at the same time through the security gate, and can support multiple metal positions.

Metal size display, alarm, intensity indicator light will show the size of the metal volume.

Power-on self-diagnostic function, the boot time of the system for self-test, and display the test results.

Multi-area independent detection, 18 independent detection areas, each area 3000 sensitivity level adjustment.

Modular component design, convenient transportation and maintenance.

Basic parameters.

Shipping weight, approx. 75 kg.

Power consumption is less than 15 watts.

Optimum thermometry operating temperature:0℃-40℃

The best working temperature for security inspection:-25℃-55℃

Working humidity：95%，No condensation

External power supply：187V-242V,50/60Hz

The working frequency shall be automatically adjusted according to the installation environment.

Outline dimension：（mm）2220（Tall）×845（Wide）×580（Depth）

Channel size：（mm）1980（Tall）×710（Wide）×505（Depth）
